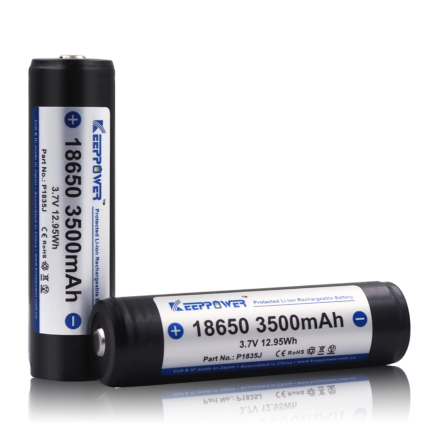

Protected and unprotected 18650 batteries can share the same nominal diameter and chemistry, yet they are not automatically interchangeable. The key difference is where electrical protection is handled. A protected 18650 battery adds a protection circuit and usually a positive cap and connecting strip to the cell. An unprotected 18650 relies on the host device or battery pack to monitor operating limits. That distinction affects safety strategy, physical length, current capability, and compatibility.
The correct choice is therefore not simply “protected is always better” or “unprotected is always more powerful.” It depends on the equipment design. Consumer devices that accept removable cells often benefit from individual protection, while engineered packs may already include a validated BMS or PCM. This guide explains the practical trade-offs so buyers can evaluate the entire power system.
The fundamental difference: where protection is managed
A protected cell typically monitors overcharge, over-discharge, overcurrent, and short-circuit conditions. If a threshold is exceeded, the circuit interrupts current. This adds an independent layer of protection for a single removable cell, but it is not a license to ignore safe charging, temperature limits, or mechanical damage. The protection circuit itself has rated current and voltage thresholds that must match the load.
An unprotected cell has no added cell-level cutoff board. It may be appropriate when a properly engineered device or multi-cell pack already provides monitoring and cutoff functions. Using an unprotected cell in equipment designed for a longer protected button-top cell can create poor contact or remove an expected safety layer. Conversely, inserting a longer protected cell into a tight compartment can damage wrappers, springs, or terminals.
Specifications that matter in the real device
Compare nominal and maximum charge voltage, rated capacity, continuous and pulse current, internal resistance, button-top or flat-top construction, and the manufacturer’s maximum dimensions. Protected 18650 cells are commonly longer than the nominal 65 mm suggested by the 18650 name because the protection board and cap add length. Actual length must come from the product drawing, not from the format name.
High-drain equipment also requires attention to the protection circuit’s current limit. A high-performance underlying cell does not guarantee that the complete protected assembly can support the same current. Select on the finished battery specification. For runtime, use watt-hours and expected load rather than capacity alone, and allow margin for temperature, aging, voltage sag, and device cutoff behavior.
| Factor | Protected 18650 | Unprotected 18650 |
|---|---|---|
| Protection | Cell-level cutoff circuit | Must be provided by device or pack |
| Typical length | Longer than a bare cell | Closer to nominal format |
| Best fit | Removable-cell products expecting protection | Engineered systems with validated monitoring |
| Current limit | Cell and PCB both matter | Cell limit and host design matter |
How to make the right choice
Choose a protected 18650 when the device documentation calls for it, when the cell is removable and individually charged, or when the host lacks comprehensive monitoring. Confirm that the protection current rating exceeds the normal and startup current of the device. Flashlights, instruments, and portable electronics may also require a button top to maintain contact.
Choose an unprotected cell only when the device or pack has a deliberate protection architecture and the cell model is approved by the designer. Pack builders should consider cell matching, fusing, thermal sensing, insulation, spacing, and fault containment. Never replace a protected cell with an unprotected one merely because the latter fits more easily.
Common mistakes to avoid
The most common mistake is assuming every 18650 is exactly 18 mm by 65 mm. Another is comparing only mAh while ignoring load current and cutoff voltage. Buyers also confuse button top with protection: terminal shape and protection are separate attributes, so a button-top cell is not necessarily protected and a flat-top assembly may still include protection.
Avoid mixing old and new cells, different capacities, brands, protection types, or states of charge in a multi-cell device. Do not carry loose cells in a pocket or bag with metal objects. Never use a torn wrapper or dented can. If a device specifies a proprietary pack, do not substitute loose 18650 cells without engineering review.
Application and OEM considerations

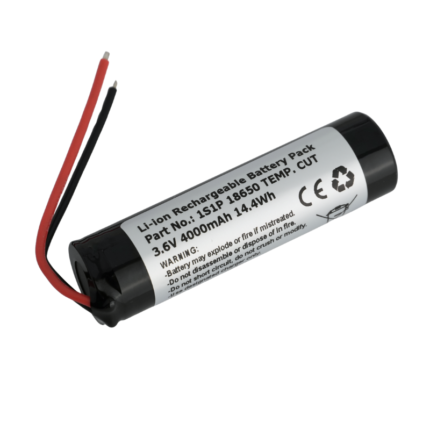

For a single-cell flashlight, the compartment length, spring pressure, peak LED-driver current, and low-voltage cutoff determine suitability. For sensors and field equipment, standby current and long storage periods may matter more. For a custom pack, the designer may use unprotected cells behind a pack-level BMS because coordinated monitoring, thermal sensing, and balancing are required.
Procurement teams should lock the complete battery part number and revision, not merely the format. A change in underlying cell, PCB, cap, or wrapper can change length, current capability, and certifications. Request samples and validate them in the final product before volume purchasing.
Worked example
Imagine a device drawing 2 A continuously with a 5 A startup pulse and a compartment that accepts up to 69.5 mm. A protected 18650 rated above both current levels and below the maximum length may be suitable. A 70.5 mm model should be rejected even if its capacity is attractive. If the device already has a robust cutoff, the design team may evaluate an approved unprotected cell, but that is an engineering decision rather than a user substitution.
Safety, verification, and purchasing discipline
Battery selection should never be based on the largest capacity number alone. Confirm the device manufacturer’s permitted chemistry, nominal voltage, maximum charge voltage, polarity, terminal style, physical envelope, and continuous and peak-current requirements. A cell that fits mechanically can still be electrically wrong. For protected and unprotected 18650 cells, the safest approach is to treat the equipment manual and the battery data sheet as a matched pair rather than assuming that two cells with similar names are interchangeable.
Buy from a traceable supplier and review the current specification sheet, protection details, test documentation, and transport information for the exact model. Keep cells away from loose metal objects, water, crushing, puncture, excessive heat, and unauthorized modification. Stop using a battery that becomes unusually hot, swollen, dented, corroded, leaking, or mechanically damaged. Use a compatible charger and never exceed the stated charge current or voltage. These practices support reliable operation but do not replace the instructions supplied with the device, charger, or battery.
A practical selection workflow
- Start with the load. Record nominal voltage, operating current, peak current, runtime target, and duty cycle.
- Check the compartment. Measure usable diameter, length, connector clearance, terminal type, and spring compression.
- Choose the safety architecture. Decide whether the application expects a protected cell, an unprotected cell managed by the host, or a complete pack with a BMS or PCM.
- Match charging. Verify chemistry, maximum charge voltage, charge current, termination method, and temperature limits.
- Validate the real system. Test representative batteries in the final device across the expected temperature and load range before approving production.
This workflow is particularly important for OEM programs. Battery behavior depends on the interaction among cell chemistry, protection electronics, mechanical packaging, firmware, charging, and the user environment. Early validation is less expensive than redesigning a battery compartment or power stage after tooling is complete.
Frequently asked questions
Are protected 18650 batteries safer?
They add cell-level electrical cutoff functions, but safe results still depend on correct charging, temperature, mechanical condition, and device compatibility.
Can a protected 18650 replace an unprotected cell?
Only if the device permits the added length, terminal style, and protection behavior and the current rating is sufficient.
Why is my protected 18650 longer than 65 mm?
The protection PCB, conductive strip, insulation, and positive cap add length to the base cell.
Does a button top mean the battery is protected?
No. Button-top construction describes the terminal; protection must be confirmed separately in the specification.
Related Keeppower resources
- Classic protected batteries
- Protected 18650 batteries
- Protected high-discharge batteries
- High-discharge batteries
- 21700 protected batteries
- Battery chargers
- Battery cases
- All Keeppower products
Conclusion
The best 18650 is the one that matches the device’s electrical, mechanical, and safety design. Protected cells add a useful independent cutoff layer and often suit removable-cell products, while unprotected cells belong in systems that deliberately manage protection elsewhere. Verify dimensions, current, terminal style, charging, and the complete safety architecture before purchase.
Need help matching a battery to a device or developing an OEM solution? Contact Keeppower with the voltage, current, runtime, dimensions, connector, charging method, and environmental requirements of your project.
