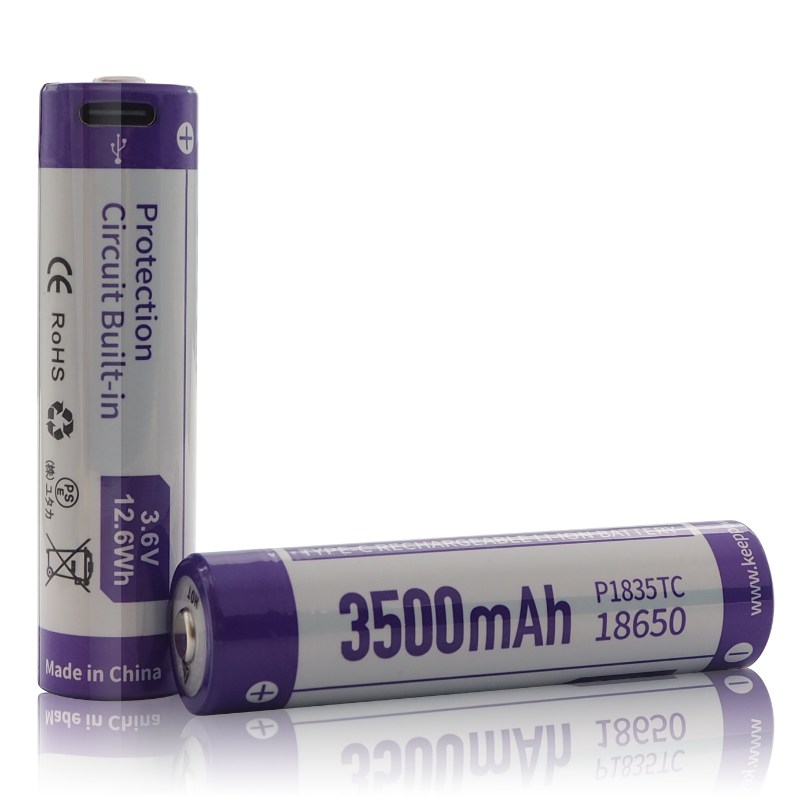

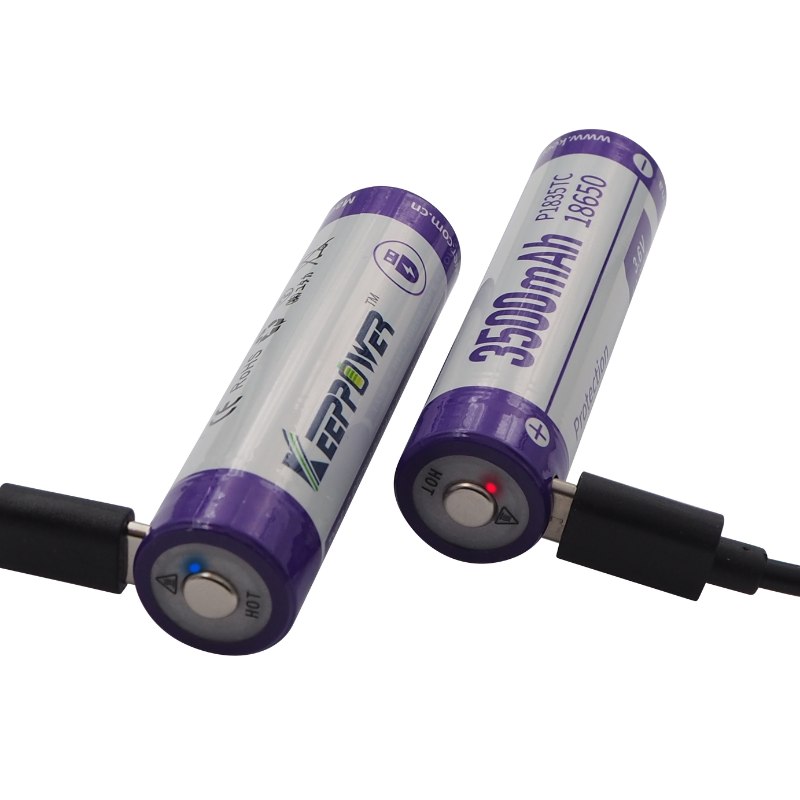

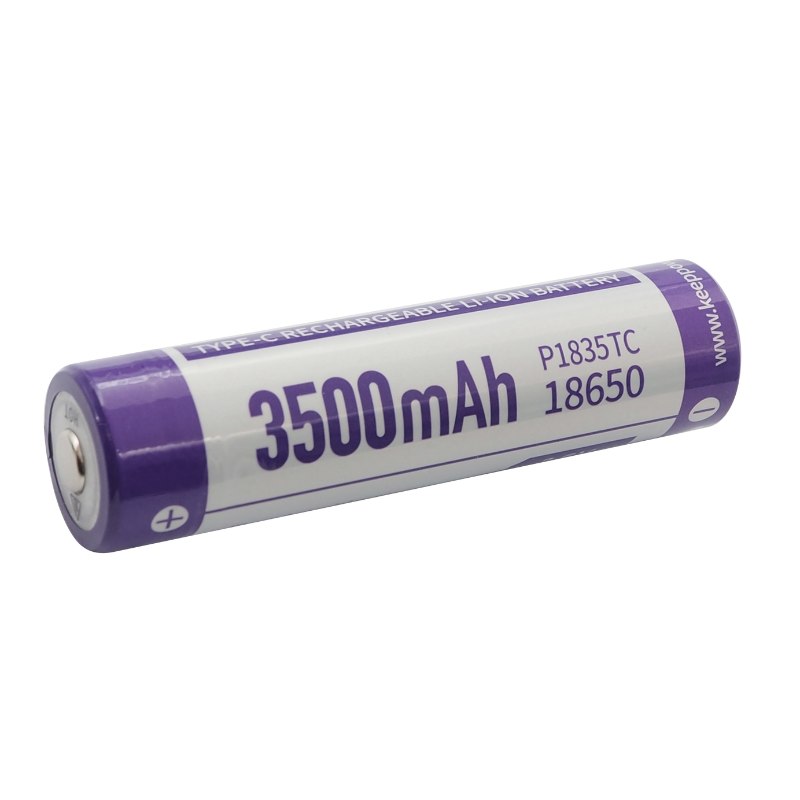

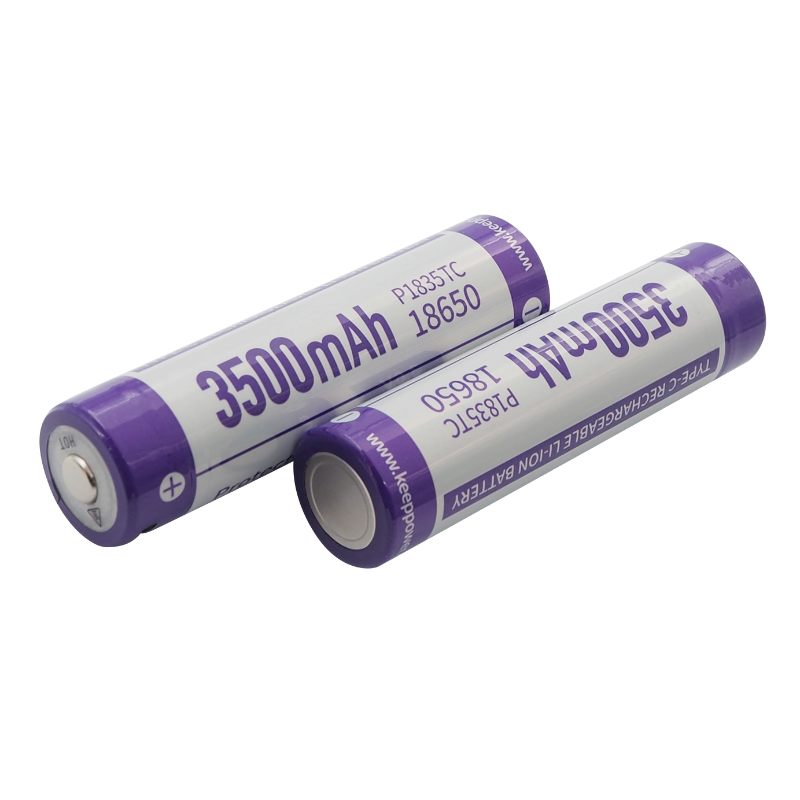

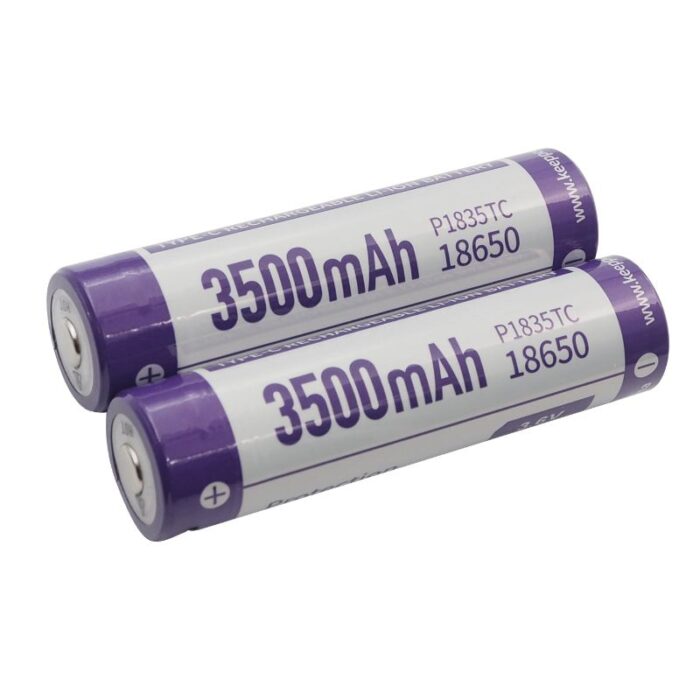

Keeppower P1835TC TYPE-C USB 18650 3.6V 3500mAh Rechargeable Li-ion Battery

* Model Name: 18650 (Protected with Type C Mount)
* Part No.: P1835TC
* Maximum Size: (D)18.8*(L)72.0mm(±0.2mm)
* Nominal Voltage: 3.6/3.7V
* Nominal Capacity: 3500mAh
* PCM IC made in Japan
* OEM/Private label/Customize accept
* Weight: Approx. 50.0g

Share:
  • Description
  • Battery Safety Tips/Caution
  • Reviews (0)
Description

1. Protected TYPE-C 18650 Li-ion Rechargeable Battery
2. Typical Capacity: 3500mAh (Min. Capacity: 3350mAh)
3. Nominal Voltage: 3.6V/3.7V
4. In Built Safety Circuitry (IC made in Japan)
5. Protection Circuit (Against over charge, over discharge, over current and short-circuit.)
6. Standard Continuous Charging Current: 1.5A (by USB),700mA (by li-ion battery charger)
7. Maximum Continuous Discharging Current: 8.0A
8. Charge Voltage by USB: 5.0V
9. 4.2 volts max voltage and 2.5 volts cut-off voltage
10. Over 500 charge-discharge cycles
11. Customize option: Top (Button/Flat), Max. discharge current, Private label, Packing…
12. Battery Certification : UN38.3, CE, ROHS, MSDS, Regulation (EU) 2023/1542

Battery Safety Tips/Caution

1.   Protected TYPE-C 18650 Li-ion Rechargeable Battery
2.   Typical Capacity: 3500mAh (Min. Capacity: 3350mAh)
3. Nominal Voltage: 3.6V/3.7V
4.   In Built Safety Circuitry (IC made in Japan)
5.   Protection Circuit (Against over charge, over discharge, over current and short-circuit.)
6.  Standard Continuous Charging Current: 1.5A (by USB),700mA (by li-ion battery charger)
7.  Maximum Continuous Discharging Current: 8.0A
8.   Charge Voltage by USB: 5.0V
9. 4.2 volts max voltage and 2.5 volts cut-off voltage
10.   Over 500 charge-discharge cycles
11. Customize option: Top (Button/Flat), Max. discharge current, Private label, Packing…
12. Battery Certification : UN38.3, CE, ROHS, MSDS, Regulation (EU) 2023/1542
