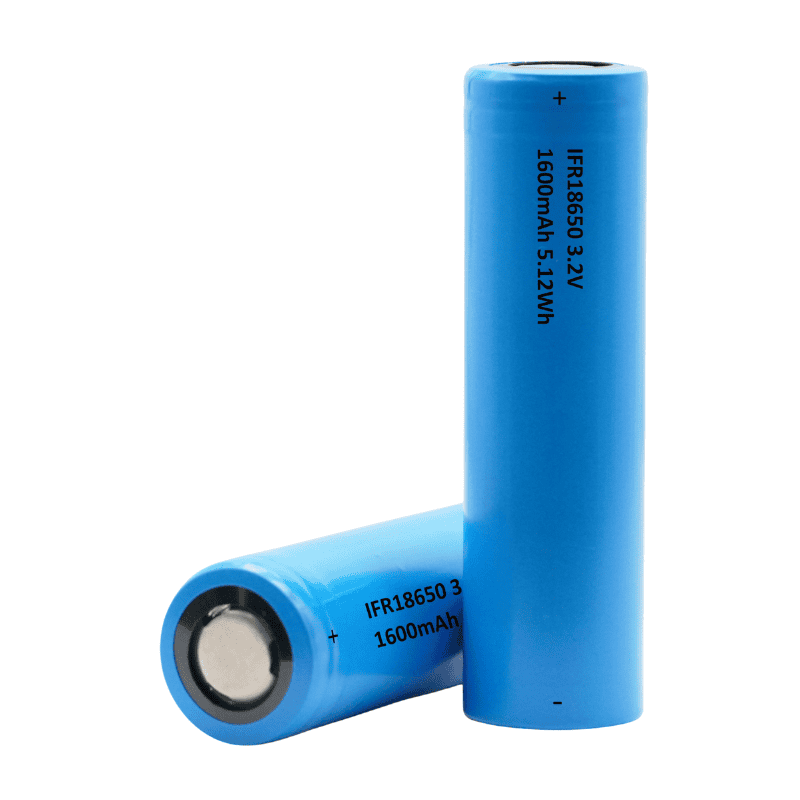

1. Type: Cylindrical LFP rechargeable lithium ion battery
2. Dimension
Φ=18.6±0.2mm
H=65.2±0.3mm
3. Nominal Capacity: 1600mAh
4. Miniumu Capacity: 1550mAh
4. Miniumu Capacity: 1550mAh
5. Nominal Voltage: 3.2V
6. Limited Charging Voltage: 3.65V
7. Standard Charging Current: 0.8A
8. Max. Charging Current: 1.6A
9. Standard Discharge Current: 0.8A
10. Max. Continuous Discharge Current: 4.8A
6. Limited Charging Voltage: 3.65V
7. Standard Charging Current: 0.8A
8. Max. Charging Current: 1.6A
9. Standard Discharge Current: 0.8A
10. Max. Continuous Discharge Current: 4.8A
11. Recommended Charging Conditions: 0.5C CC to 3.65V, then CV to 0.01C
12. Cycle Life: 2000cycles [Capacity≥80%]
13. Weight: Approximately 39.5g
13. Weight: Approximately 39.5g
14. Internal Resistance: ≤25mΩ
15. Temperature
Charge: 0~+55°C
Discharge: -20~+60°C
Storage: -20~+55°C (1 month)
-20~+45°C (3 months)
-20~+25°C (6 months)
-20~+45°C (3 months)
-20~+25°C (6 months)
