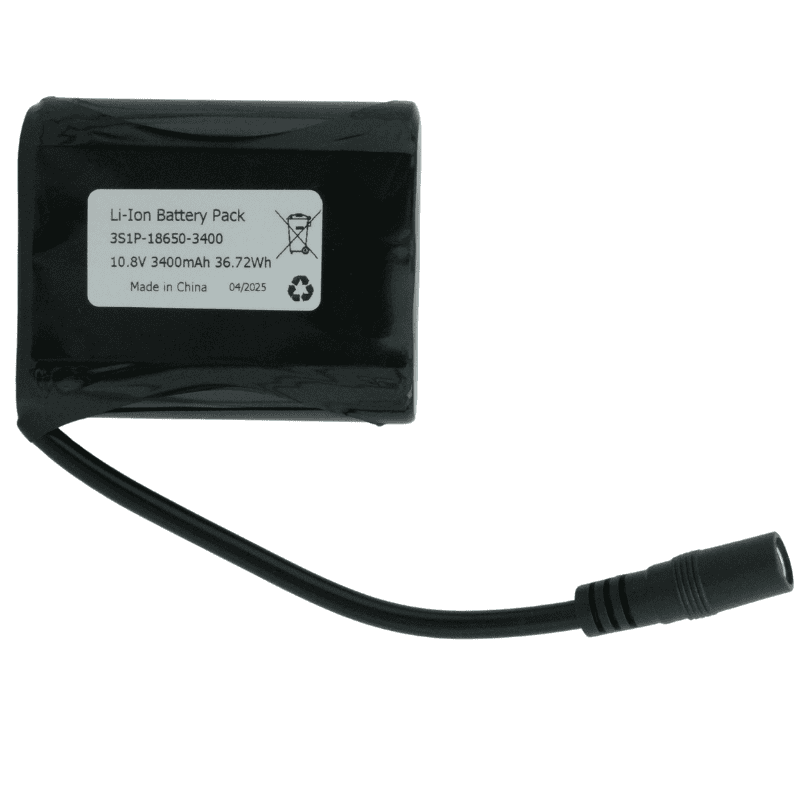

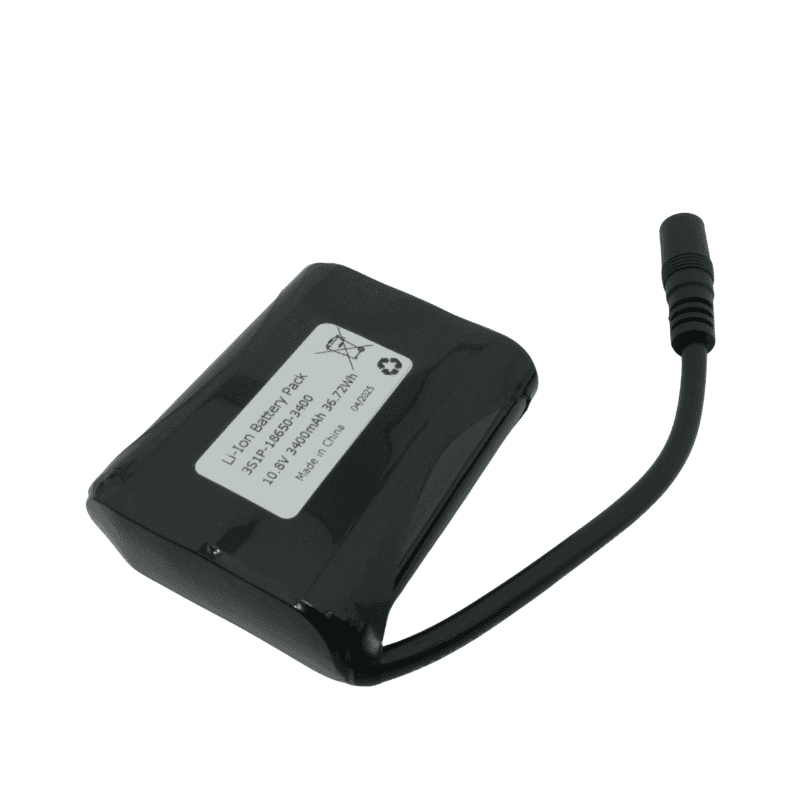

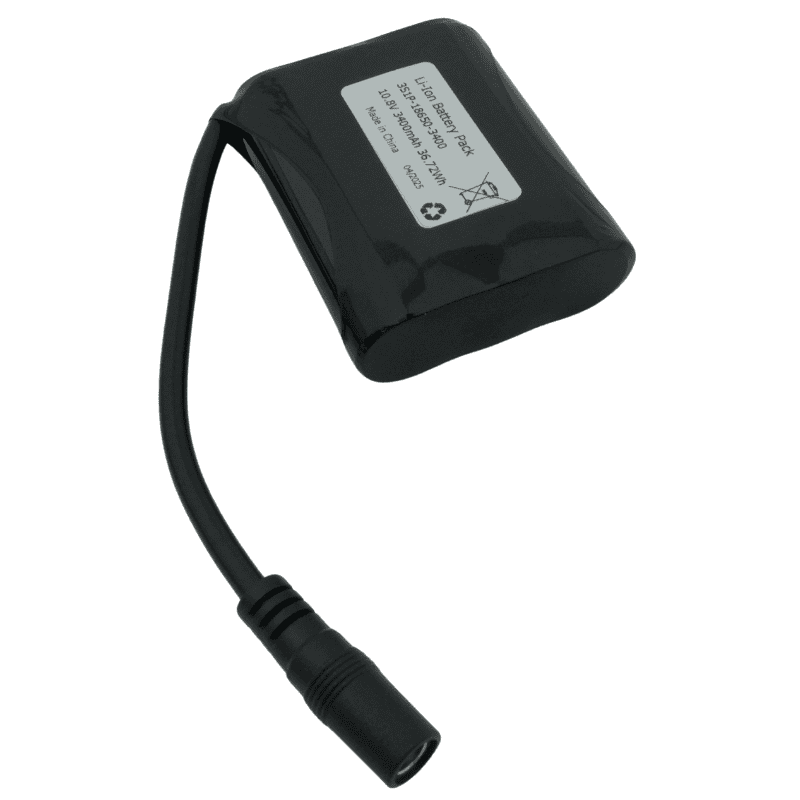

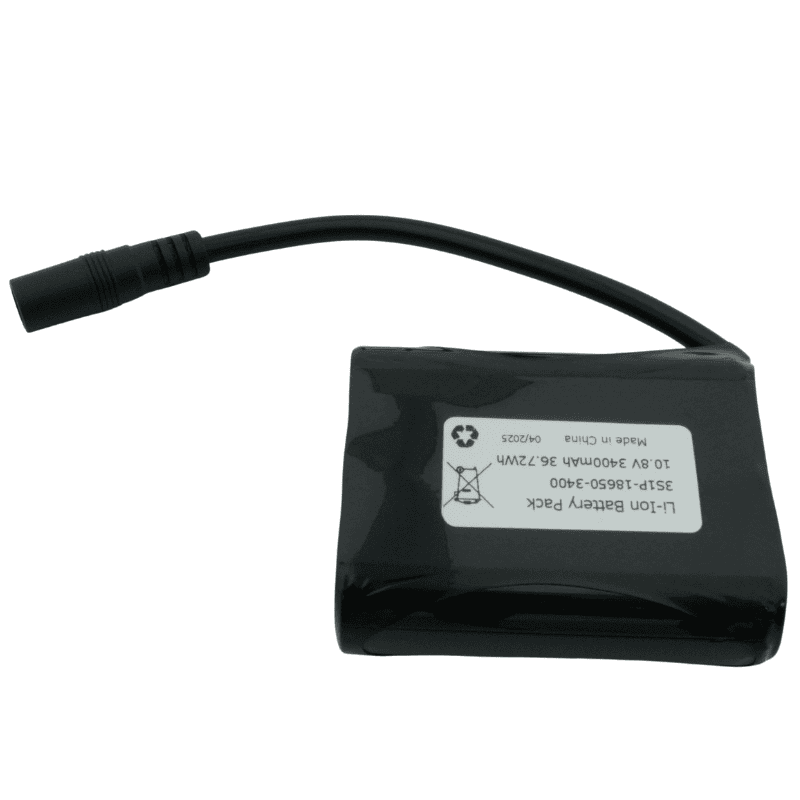

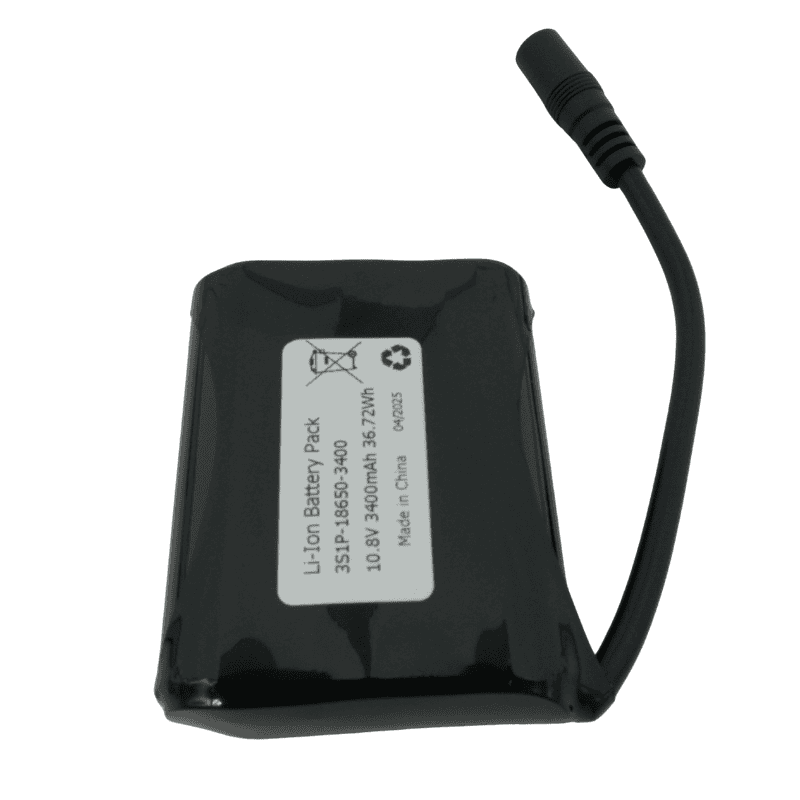

3S1P Li-ion Battery Pack 10.8V 3400mAh with Protection Circuit

3S1P DC Plug Li ion 10.8V 18650 3400mAh Battery Pack (5.5*2.1mm DC Connector)

1. Brand: Keeppower
2. Quality Li-ion rechargeable cell Samsung INR18650-35E
3. Composed Type: 3S1P
4. External Safety Circuit: YES
5. Nominal Voltage: 10.8V
6. Nominal Capacity: 3400mAh

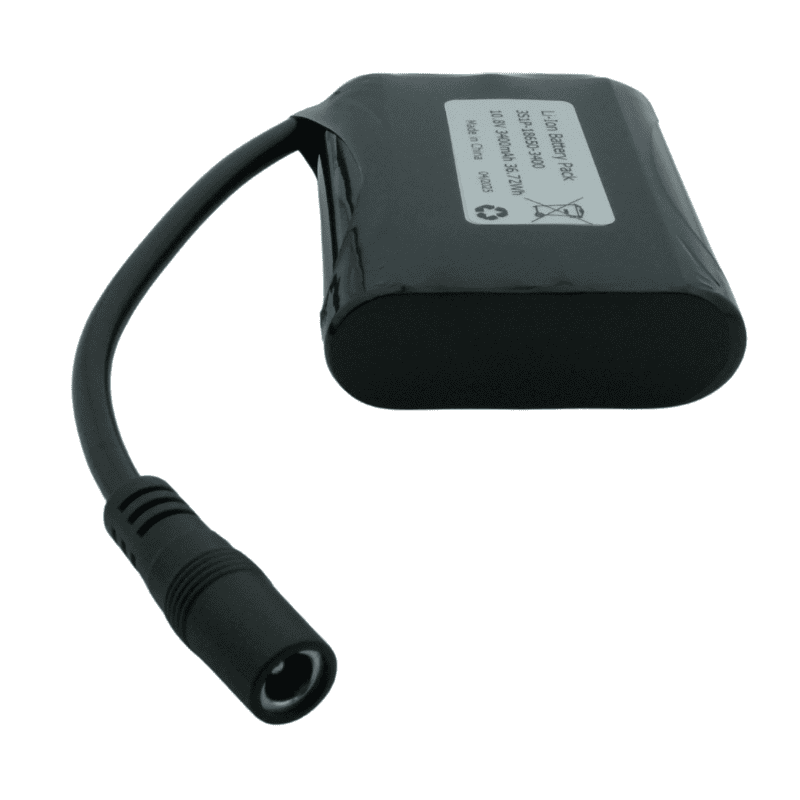

7. Connector/Plug info: DC Female 5.5*2.1mm
8. OEM Accepted (cells, capacity, connector, current, wires…)

Description

The 3S1P Li-ion battery pack is a highly reliable and efficient power solution designed for demanding industrial and consumer applications. Manufactured by Keeppower, a leader in innovative energy solutions, this 10.8V, 3400mAh Li-ion battery pack is engineered with a high level of safety, protection, and performance, making it ideal for a wide range of uses.

Features：

1. Type: Pack

2. Model: 3S1P Li-ion 10.8V 18650 3400mAh battery pack with protection circuit
(With over charge/over discharge/over current/short circuit protections)

3. Cell: Samsung INR18650-35E (Can be customized)

4. Chemistry: Li-ion

5. Nominal Capacity: 3400mAh (Can be customized)

6. Nominal Voltage: 10.8/11.1V

7. Maximum Discharge Current: 2.0C (Can be customized)

8. Charge Current:

Standard: 0.2C

Rapid: 0.5C

9. Minimum Capacity: 3400mAh

10. End Voltage of Discharge: 7.5V

11. Standard Discharge: 1.0C

12. Cycle Life: >500cycles

13. Operating Temperature

Charge: 0~ +40°C

Dicharge: -20~ +60°C

14. Storing Conditions

less than 1month: -20 ~ +50°C

less than 3months: -20 ~ +45°C

less than 1year: -20 ~ +20°C

15. Weight(Max.): Approx.150g
16. Dimensions(Max.): 20.0mm(H)*57.0(W)*70.0(L)mm

Battery Safety Tips/Caution

Please fully charge the battery before first use.
The battery’s positive terminal may become hot during charging. Please do not touch it.
Do not short circuit. Please keep it away from loose change and metal objects.
Do not immerse battery in any liquid, including water.
Do not expose the battery to direct sunlight or high temperature. Keep it away from fire.
Do not crush, puncture, disassemble, or modify the battery.
Do not reverse the positive (+) and negative (-) terminals when charging or using the battery.
Immediately stop using if battery if it has abnormalities, such as unusual smell, overheating, discoloration, or deformation.
On exposure to battery electrolytes, rinse immediately with water and seek medical treatment.
Keep the battery away from children and pets.
